How to Insulate a Metal Building for Maximum Energy Efficiency?

Ever walked into your metal building on a hot day and felt like you were stepping into a furnace? Or maybe in winter, it’s so cold inside you can see your breath even with the heat running.

Many metal building owners struggle with extreme temperature swings, sky-high energy bills, and annoying condensation that leads to rust, mold, and discomfort. Unlike traditional structures, metal buildings transfer heat and cold rapidly. Without proper insulation, this can lead to discomfort, higher energy costs, added strain on HVAC systems, and even long-term structural damage.

So, how do you insulate a metal building for maximum energy efficiency?

In this guide, you’ll learn:

• The best insulation materials for metal buildings
• Pros and cons of spray foam vs. fiberglass
• Cost breakdown and ROI
• How to prevent condensation issues
• Step-by-step installation tips

By the end of this blog, you’ll have the knowledge and tools to make informed decisions about insulating your metal building. No matter if you’re managing a commercial facility, taking on a personal project, or overseeing construction as a contractor.

Why Insulation Matters for Metal Buildings

Metal buildings have unique energy challenges due to steel’s high thermal conductivity. Unlike traditional wood or concrete structures, heat and cold easily pass through metal, leading to rapid temperature changes inside. This results in:

• Higher energy bills
• Interior discomfort
• Condensation and moisture problems

Thermal bridging (where heat escapes through metal framing) and lack of a vapor barrier contribute to inefficiency and structural deterioration over time.

Proper insulation combats these issues by:

• Slowing heat transfer
• Controlling indoor humidity
• Reducing HVAC usage
• Extending the life of the building

Understanding the Types of Metal Building Insulation

Choosing the right insulation for your metal building depends on a few key factors like climate, budget, building purpose, and moisture control needs. Below is a breakdown of the most commonly used insulation types, along with their benefits, limitations, and best use cases:

1. Fiberglass Batts and Blankets

Fiberglass is one of the most widely used and affordable insulation options for metal buildings. It’s typically installed between framing members and can be a good fit for DIY projects or basic temperature control needs.

Pros:

• Cost-effective and widely available
• Easy to install (DIY-friendly)
• Offers basic thermal resistance

Cons:

• Can absorb moisture if not properly sealed
• Prone to air leakage without additional vapor barrier or sealing

Performance & Cost:

• R-Value: ~3.5–4.3 per inch
• Cost: $0.50–$1.50 per square foot

Best for: Budget builds, garages, agricultural sheds, or storage units in mild climates.

2. Spray Foam Insulation (Open-Cell vs. Closed-Cell)

Spray foam provides excellent air sealing and moisture control, especially closed-cell varieties. It expands to fill gaps, making it ideal for irregular surfaces and tight joints in metal buildings.

Pros:

• High thermal performance
• Acts as air and moisture barrier
• Closed-cell foam adds structural strength

Cons:

• Higher upfront cost
• Requires professional installation

Performance & Cost:

• R-Value:
  • Open-cell: ~3.5–4.0 per inch
  • Closed-cell: ~6.5–7.0 per inch
• Cost: $1.00–$2.50 per square foot

Best for: Year-round use buildings, workshops, commercial spaces, and climates with condensation risks.

3. Rigid Foam Boards & Insulated Metal Panels

Rigid foam boards and pre-insulated panels offer high insulation performance and are well-suited for roof and wall retrofits or new constructions aiming for high energy efficiency.

Pros:

• High R-value per inch
• Moisture-resistant and durable
• Fast installation with insulated metal panels

Cons:

• Higher material and installation costs
• Less flexible for irregular surfaces

Performance & Cost:

• R-Value: ~5.0–8.0 per inch
• Cost: $4.00–$8.00 per square foot

Best for: Modern, high-performance buildings where insulation is a long-term investment.

4. Reflective Foil and Radiant Barriers

Radiant barriers don’t insulate in the traditional sense but reflect radiant heat away from the building, making them a valuable addition in hot climates. These are often installed under the roof or paired with another insulation type.

Pros:

• Reflects radiant heat effectively
• Lightweight and easy to install
• Affordable supplement to other systems

Cons:

• Does not insulate against conduction or convection
• Needs to be used alongside bulk insulation for best results

Performance & Cost:

• R-Value: Not applicable (works via reflection)
• Cost: ~$0.50–$1.50 per square foot

Best for: Hot, sunny regions with metal roofs exposed to direct sunlight. Ideal for warehouses, workshops, and carports.

Material Comparison Table

Material Type	R-Value per Inch	Cost/sqft	Moisture Resistance	Best Use Case
Fiberglass Batts	3.5–4.3	$0.50–$1.50	Moderate	Budget-friendly, mild climates
Spray Foam (Closed)	6.5–7.0	$1.00–$2.50	High	Year-round buildings, moisture areas
Rigid Foam Panels	5.0–8.0	$4.00–$8.00	High	Premium builds, retrofits
Reflective Foil	N/A	$0.50–$1.50	Low–Medium	Hot climates, supplemental use

Comparing Foam vs Fiberglass: Which Is Best?

When it comes to insulating a metal building, spray foam and fiberglass batts are the two most commonly considered options and for good reasons. Both materials have proven performance records, but they differ significantly in how they insulate, how they handle moisture, and how much they cost.

If you’re unsure which one to choose, this section will help clarify the differences so you can align your decision with your building’s needs, climate conditions, and budget. Whether you’re aiming for basic comfort or long-term energy efficiency, here’s how foam and fiberglass stack up side by side.

Feature	Fiberglass Batts	Spray Foam (Closed-Cell)
Cost/sqft	$0.50–$1.50	$1.00–$2.50
R-Value (per inch)	3.5–4.3	6.5–7.0
Air Sealing	Low	Excellent
Moisture Resistance	Moderate	High
DIY-Friendly	Yes	No
Longevity	Moderate	High
Condensation Control	Fair	Excellent

Our Recommendation Matrix:

• Tight Budget, Mild Climate – Fiberglass
• Cold/Hot Climate, Year-Round Use – Closed-cell Spray Foam
• Premium Build / Long-Term ROI – Insulated Metal Panels

Hidden Risk: Poorly installed or inadequate insulation leads to condensation damage, corrosion, and HVAC inefficiency.

Metal Building Insulation Cost & ROI Explained

Understanding the cost of insulating a metal building is key to making an informed decision but it’s equally important to consider the long-term return on that investment. While upfront prices can vary based on material type, building size, and climate, the right insulation can significantly lower energy bills, reduce maintenance needs, and extend the lifespan of your structure.

Below, we break down typical costs and show how proper insulation can pay for itself over time:

Cost by Insulation Type:

• Fiberglass: $0.50–$1.50/sqft
• Spray Foam: $1.00–$2.50/sqft
• Insulated Panels: $4.00–$8.00/sqft

Example:
For a 40×60 metal building (~2,400 sqft):

• Total cost: $2,400–$7,000 (varies by material)

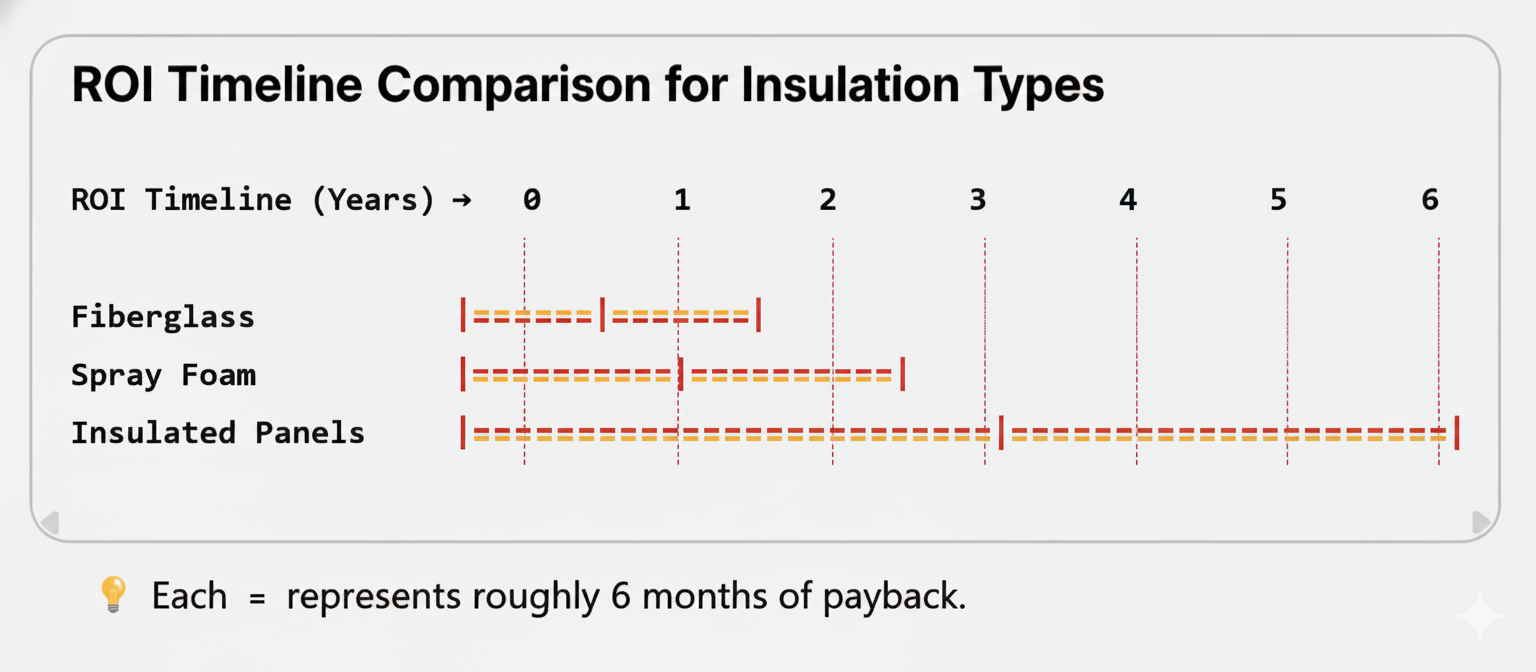

Energy Savings:

• Monthly reduction: $100–$200
• Annual: $1,200–$2,400
• ROI: Payback in ~1.5–3 years

Proper insulation turns ongoing energy costs into long-term savings. With the right approach, you can improve comfort, reduce utility bills, and recover your investment in just a few years.

How Insulation Improves Energy Efficiency & Comfort?

While the initial focus of insulation is often cost savings, its impact goes much further especially in metal buildings. A well-insulated structure not only cuts energy consumption but also creates a more comfortable, durable, and quiet interior environment.

Here’s how effective insulation contributes to both energy efficiency and everyday comfort:

1. Reduces HVAC Load and Energy Consumption: Insulation slows down the rate of heat transfer through the building envelope, meaning your heating and cooling systems don’t have to work as hard to maintain a comfortable indoor temperature. This leads to lower utility bills and significantly extends the lifespan of HVAC equipment due to reduced wear and tear.
2. Stabilizes Indoor Temperatures: Without insulation, metal buildings are prone to rapid temperature fluctuations. Proper insulation creates a thermal barrier that helps maintain consistent indoor temperatures, making the space more usable and comfortable year-round.
3. Improves Acoustic Comfort: Insulation also reduces noise transmission. This is especially helpful in metal buildings where sound can echo or reverberate. If you’re running loud machinery or just want a quieter workspace, insulation helps dampen both external noise and internal sounds.
4. Prevents Condensation and Moisture Damage: Metal buildings are especially prone to condensation when warm interior air meets cold metal surfaces. This can lead to rust, corrosion, mold, and insulation degradation. Insulation, when paired with proper vapor barriers and air sealing, helps control moisture and protect the building’s structure and contents.

Pro Tip: A consistent 10°F improvement in indoor temperature stability can reduce HVAC energy usage by 15–25%, making insulation one of the most effective ways to improve building efficiency.

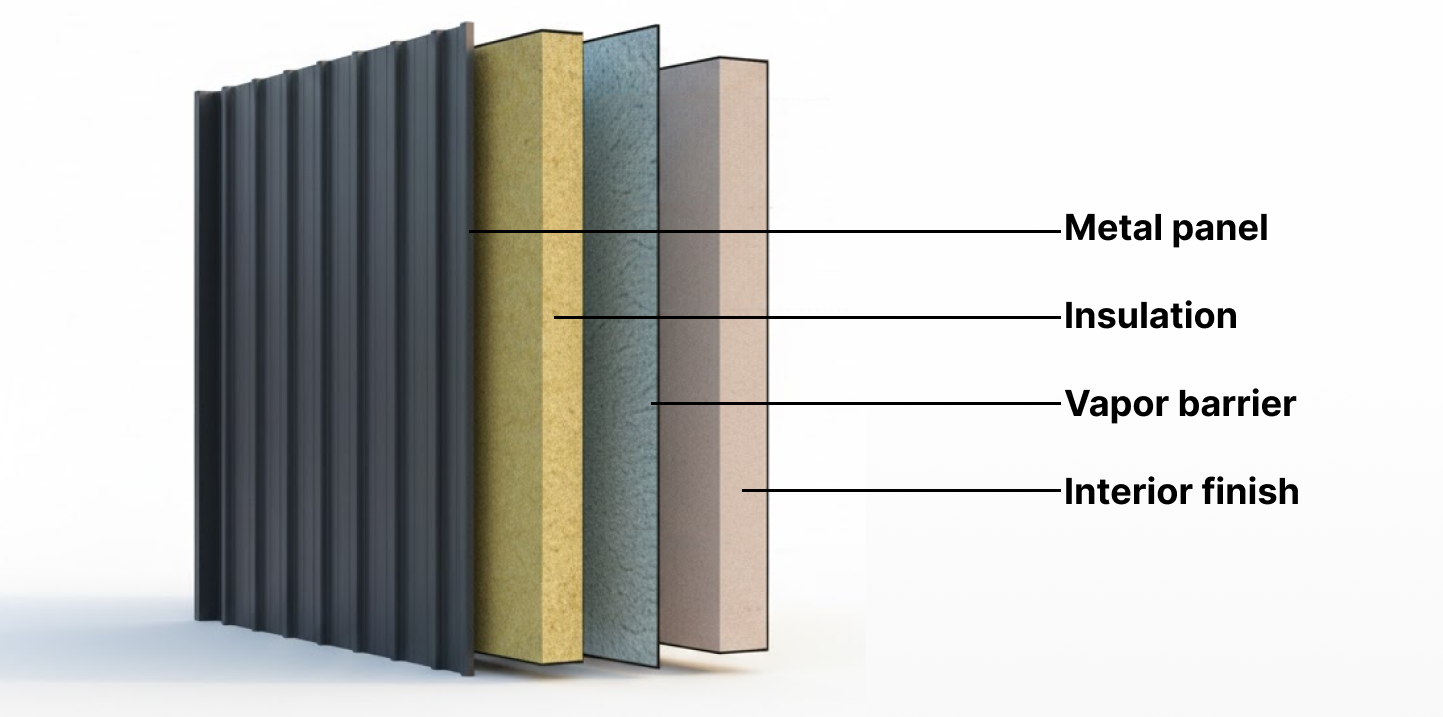

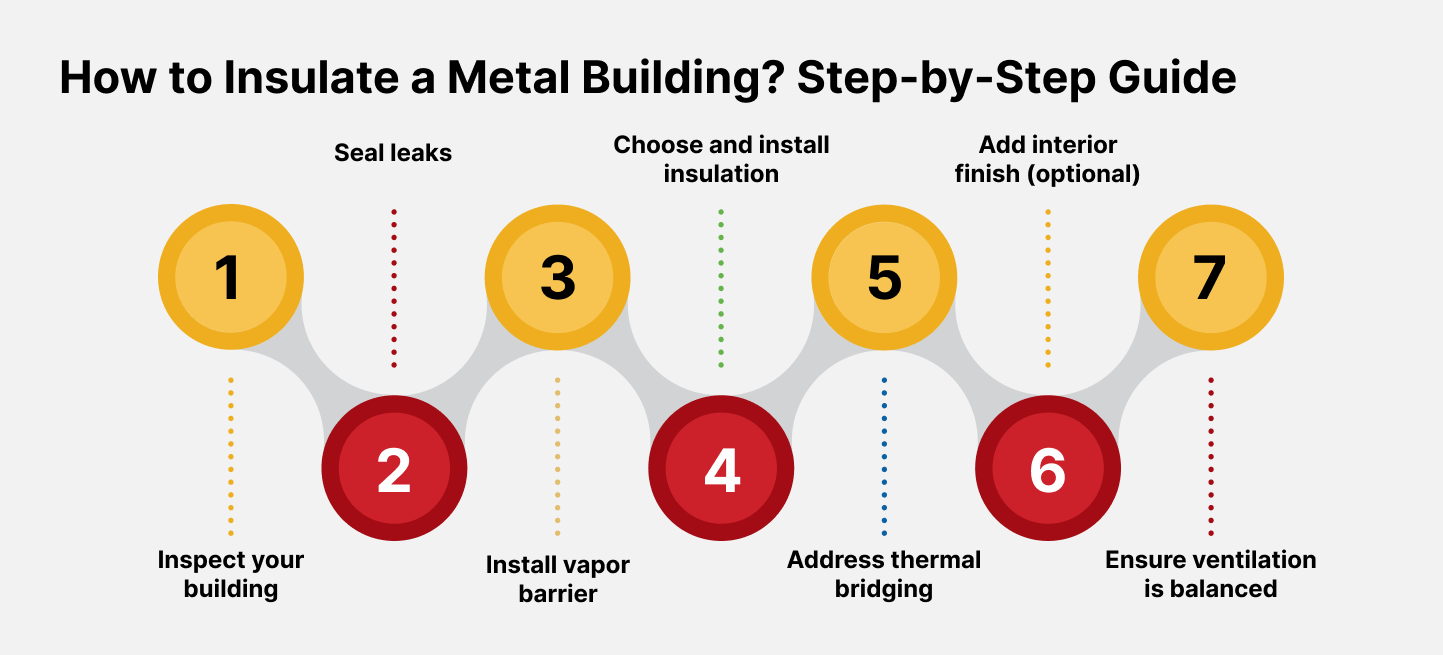

How to Insulate a Metal Building? Step-by-Step Guide

Insulating a metal building can seem overwhelming, but with the right approach, it’s a straightforward process. From sealing air leaks to choosing the right insulation type, each step plays a key role in improving efficiency and preventing future issues like moisture buildup or heat loss.

Here’s a simple step-by-step process to get it done right:

1. Inspect your building: Check for air leaks, rust, or signs of moisture. Assess framing, fasteners, and existing wall/roof conditions.
2. Seal leaks: Use foam tape or silicone around gaps, eaves, and penetrations.
3. Install vapor barrier: Lay before insulation to prevent moisture ingress.
4. Choose and install insulation: Based on use and budget, choose from: Batts, spray foam and rigid board.
5. Address thermal bridging: Add liner panels or insulation over metal framing.
6. Add interior finish (optional): Drywall or liner panels for aesthetics and extra insulation.
7. Ensure ventilation is balanced: Don’t make the building too airtight; use mechanical ventilation if needed.

If you’re working on a new build, make sure your site is properly prepped. This guide on metal building site preparation covers everything you need before your kit arrives.

Checklist Before You Insulate:

How to Control Condensation and Moisture in Metal Buildings?

Moisture is one of the most common and damaging issues in metal buildings. Without proper insulation and ventilation, warm interior air can meet cold metal surfaces, leading to condensation, rust, mold, and even structural decay over time. This section covers why condensation happens, how to prevent it, and what materials or strategies work best to keep your building dry and protected year-round.

Why condensation happens:

• Warm air inside hits cold metal surfaces → water droplets form
• Gaps behind panels allow air/moisture infiltration

Solutions:

• Closed-cell spray foam (acts as vapor barrier)
• Proper air sealing and continuous insulation layer
• Roof/wall vents to allow airflow
• Dehumidifiers in very humid zones

Watch for signs:

• Water streaks or rust on panels
• Dripping from ceiling
• Damp or sagging insulation

In hot or humid climates, use reflective barriers + ventilation to reduce roof condensation.

Climate & Code Considerations

Insulation requirements aren’t one-size-fits-all. They vary based on your building’s location, climate, and local codes. Choosing the right R-value for your metal building depends largely on your region’s temperature swings and humidity levels.

Insulation needs vary by region. Example R-value targets:

Climate Zone	Suggested R-Value
Southern US	R-13 to R-19
Northern US	R-25 to R-30

Always check your local building codes for:

• Required insulation thickness (R-value)
• Vapor barrier/fire safety requirements
• Acceptable materials for metal structures

Need help figuring out your climate zone? Check out this climate zone guide from Energy.gov and this IECC climate zone map for a visual reference based on your location.

Conclusion

Insulating a metal building is not a one-time upgrade, it’s a long-term investment in efficiency, comfort, and building value. While upfront costs vary depending on materials and building size, the return on investment can be surprisingly quick. Here’s a simple breakdown:

Quick ROI Comparison Table

Building Size	Insulation Type	Cost Estimate	Est. Annual Savings	Payback Time
40×60	Fiberglass	$3,000	$1,200	~2.5 years
40×60	Spray Foam	$5,500	$2,000	~2 years

Hidden Value You Shouldn’t Ignore

• Improved comfort leads to better productivity or tenant satisfaction.
• Reduced maintenance means fewer repairs over time (no more dealing with condensation damage).
• Higher resale value as energy-efficient buildings attract better buyers or tenants.

Tips to Maximize Your Investment

• Request quotes from at least two contractors to compare scope and pricing.
• Verify R-values and check for continuous air/vapor sealing.
• Ask about warranties for both materials and installation.

Proper insulation helps your building perform better in any climate. Be it a humid coastal region or facing freezing winters. Making the right material choice and ensuring proper installation can save you thousands over time, while also improving comfort, durability, and building performance.

Ready to Take the Next Step?

Start improving your building’s efficiency, comfort, and long-term value today. From new construction to retrofits, a well-planned insulation strategy can have a lasting impact on performance and savings.

• Get a Free Metal Building Insulation Quote: Speak with experts and get tailored recommendations based on your building, climate, and budget.
• Download Our Free Metal Building Insulation Checklist: A simple checklist to help you compare materials, estimate ROI, and plan your next steps with confidence.

If you’re considering getting pricing, here’s a clear breakdown of what happens after you request a quote from Buildway, so you know exactly what to expect next.

Frequently Asked Questions

1. What’s the best insulation for a metal building?

Closed-cell spray foam is generally considered the best insulation for metal buildings due to its high R-value, air sealing capabilities, and moisture resistance. However, fiberglass batts are a cost-effective option for less demanding applications.

2. How thick should insulation be in a metal building?

The required insulation thickness depends on the material and the desired R-value. To achieve R-19, you’ll need approximately:

• 6 inches of fiberglass batt insulation, or
• 3 inches of closed-cell spray foam.

3. Does spray foam stop condensation in metal buildings?

Yes, closed-cell spray foam helps stop condensation by acting as both an air barrier and a vapor barrier, preventing moisture from forming on interior metal surfaces.

4. How much does it cost to insulate a 40×60 metal building?

The cost to insulate a 40×60 metal building can vary widely based on the type of insulation used, local labor rates, climate zone, and whether you’re insulating the roof, walls, or both. Factors like material thickness, vapor barrier requirements, and installation complexity also play a role. It’s best to gather a few quotes to get an accurate estimate for your specific project.

5. Can I install insulation in a metal building myself?

You can install fiberglass insulation yourself with basic tools and safety gear. However, spray foam insulation and insulated metal panels require professional equipment and expertise for proper installation.
